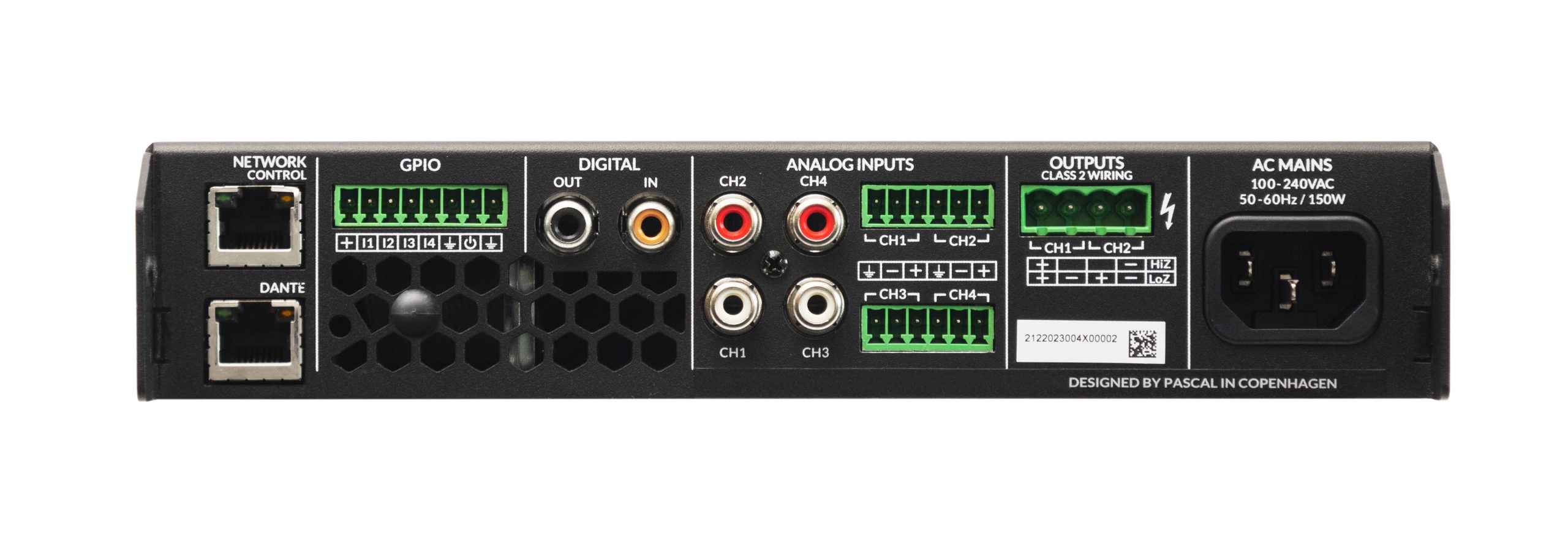

IP60.2

IP SERIES

Customizable installation amplifier with control SW for commercial install. The IP series feature full matrix DSP, easy connection via WiFi and include regulatory certifications.

Specifications
Features
Downloads
Contact Pascal Sales
IP60.2 Specifications
Power Ratings (1% THD @ 120VAC and 230VAC) 4 Ω 8 Ω 70 V 100 V*
Single channel 120 W 120 W 120 W 120 W
All channels 60 W 60 W 60 W 60 W
>
  • Number of channels
  • 2
  • Dimensions, H x W x D
  • 4.5 x 220 x 208 mm (1.75 x 8.66 x 8.19 in)
  • Weight
  • 2kg (4.4 lbs)
  • Output Circuitry
  • UMAC™ Class D - full bandwidth PWM modulator with ultra-low distortion
  • Output Voltage
  • 70Vp / 140Vpp (unloaded) // Bridged 140Vp / 280 Vpp (unloaded)
  • Signal To Noise-Ratio
  • >106dB (A-weighted, 20Hz-20kHz, 8Ω load)
  • THD+N (typical)
  • < 0.05% (20Hz-20kHz, 8Ω load, 3dB below rated power)
  • Frequency Response
  • 20Hz-20kHz (+0/-0.25dB (8Ω load, 3dB below rated power)
  • Protection Circuits
  • Short circuit -, DC -, Undervoltage -, Temperature - and Overload protection
  • Power Supply
  • UREC™ universal mains switch mode power supply with Power Factor Correction (PFC) and standby converter
  • Operation Voltage
  • Universal Mains, 100V-240V, 50Hz-60Hz
  • Standby Consumption
  • TBD
  • Accessories
  • Rack mount kit Wall/desktop mount kit
  • *100V line mode operates at 90V (~-1dB)
    ** Power sharing operational
    *** 16Ω power output is limited by maximum voltage swing available in LoZ mode.

    IP60.2 Features

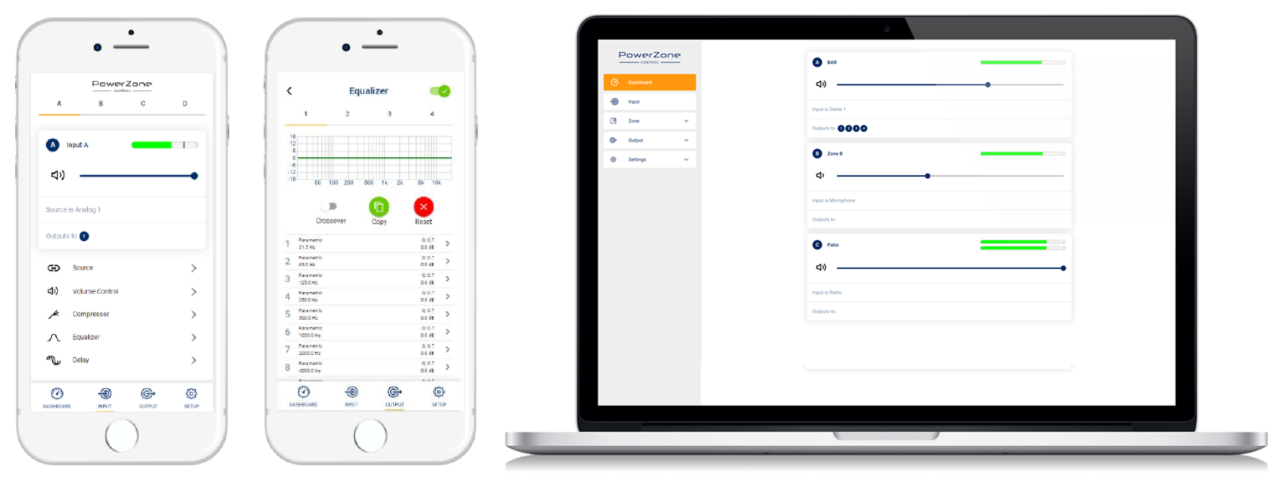

    Intuitive Control SW

    The IP series are configured by intuitive Control SW optimized for commercial and residential install. The
    interface provides simple and user friendly configuration. Please contact your Pascal sales person for a review of the interface.

    High Power Density & Flexibility

    IP series offers market leading power density with up to 4 x 125 W constant voltage channels from a 1RU half rack format. Additionally, the series can also power share up to 250W per channel offering maximum flexibility for the installer.

    Highly Customizable

    For unique ID front panel mechanics and lexan foil can be customized. The series also features Control SW, allowing for custom functionality and presets to match complementary manufacturers products. For high volume projects, full API control can be offered.

    Turnkey Solution & Certification

    IP series amplifiers are offered as a complete box build including cable, manuals and packaging ready to ship. Rack mounting accessories are also available. Furthermore, it comes with Safety and EMC certifications.

    Market Proven Reliability

    IP series amplifiers are based on Pascal ’s market proven amplifier designs, which are recognized for high reliability from more than a decade in the pro audio industry.

    Universal Mains & PFC

    Pascal’s UREC™ PFC (Power Factor Correction) power supply technology enables universal AC mains operation, eliminating the need for local market specific power regulation products and susceptibility to related reliability issues. The power supply delivers consistent, regulated power worldwide.

    Download
    File name Document size Version Last updated
    Data sheet
    PDF (3.16 MB) 1.0 21-10-2021
