Our products

The new T-PRO Series

Vestibulum non eros sit amet nisl dignissim condimentum vel quis sem. In volutpat, ante sed interdum posuere, nunc elit dignissim orci.

Box build amplifiers
 ModelDante optionChannelsPower HiZ/LoZ single channel drivenPower HiZ/LoZ all channels drivenForm factor
IP500.2Ultimo 4x421000 W500 W2U full rack
Download
IP500.4Ultimo 4x441000 W500 W2U full rack
Download
IP800.2Ultimo 4x421500 W800 W2U full rack
Download
IP800.4Ultimo 4x441500 W800 W2U full rack
Download
IP60.2Ultimo 4x42120 W60 W1RU ½rack
Download
IP60.4Ultimo 4x44250 W60 W1RU ½rack
Download
IP60.8-8250 W60 W1U full rack
Download
IP125.2Ultimo 4x42250 W125 W1RU ½rack
Download
IP125.4Ultimo 4x44250 W125 W1RU ½rack
Download
IP125.8-8250 W125 W1U full rack
Download
CV125.2Not supported2250 W125 W1RU 1/2 rack
Download
CV125.4Not supported4250 W125 W1RU 1/2 rack
Download
CV250.4Not supported4250 W250 W1RU Full rack
Download
IP Series Accessories
 Model Color Form factor

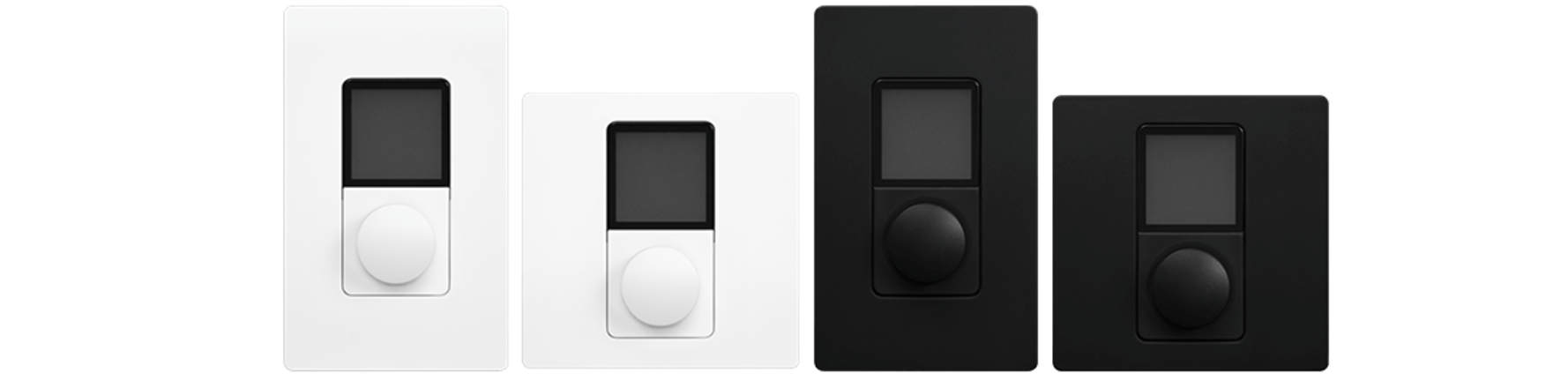

ZoneController White-Black EU / US
Download

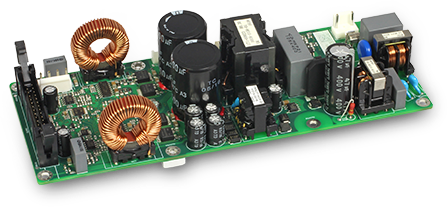

Amplifier modules with SMPS
 ModulePower ratingsPower rating BTLPIN Con.Extension modules
U-PRO1280WNot supported26
  • None
  • U-PRO2280 + 100WNot supported26
  • None
  • U-PRO2SD140 + 140W140W26
  • None
  • U-PRO2S280 + 280W280W26
  • None
  • T-PRO1500WNot supported26
  • None
  • T-PRO2500 + 150WNot supported26
  • None
  • S-PRO2500 + 500W / 725 + 275W1000W26
  • S-A1, S-A2
  • L-PRO21200 + 400WNot supported26
  • None
  • L-PRO2HP2500 + 800W*Not supported26
  • None
  • Extensions
     ModulePower ratingsPower rating BTLPIN Con.Master module
    U-A1D95WNot supported26
  • U-PRO1, U-PRO2, U-PRO2S,
    U-PRO2SD
  • U-A1280WNot supported26
  • U-PRO1, U-PRO2, U-PRO2S
  • U-A2SD140W + 140W140W-
  • U-PRO1, U-PRO2, U-PRO2S
  • Download
    U-A2S280W + 280W280W26
  • U-PRO1, U-PRO2, U-PRO2S
  • Download
    L-A2800 + 800W1500/2500W*26
  • L-PRO2S
  • S-A1500WNot supported26
  • S-PRO2
  • S-A2500 + 500W1000W26
  • S-PRO2
  • *Dynamic headroom power

    Pro Audio Features

    Application optimized design

    Our range of amplifier modules are application optimized for either self-powered loudspeakers or power amplifiers, specific for the pro audio market requirements; from high-end touring sound and fixed venue PA systems, to portable compact PA speakers, studio monitor systems, and low profile commercial install cabinets.

    System Reliability

    The design of our amplifier modules incorporates a form factor and cooling concept optimized for delivering ultra high power ratings and SPLs from compact cabinet or chassis designs. Our world leading, best-in-class system efficiency minimizes requirements for cooling, contributing to the unrivaled long-term reliability of our modules.

    Premium sound quality

    With Pascal’s proprietary UMAC™ Class-D technology, unrivalled power comes with unrivalled sonic performance. Premium sound quality, in a pro audio optimized amplifier, includes best–in-class signal-to-noise, distortion and dynamic range specifications.

    Universal Mains & Power Factor Correction

    Our UREC™ PFC power supply technology enables universal AC mains operation. Automatically adaptive to any mains voltage between 100 V and 240 V, our propriety high efficiency, compact power supply will deliver, regulated power anywhere in the world.

    Aux. Power & Readouts

    Energy Star Compliant auxiliary power outputs, readouts and control signals are available to feed integrated DSP or analog I/O boards. Advanced, real-time readouts of protect/mute, temperature and clip signals are accessible for DSP and network control implementations, and I/O stages.

    Fully Self-Protected

    Pascal amplifier modules are fully self-protecting and designed on an ‘audio-at-all-times’ principle , with all relevant protection features individually implemented for the Switched Mode Power Supply and each amplifier channel.

    UL Recognised Component

    Our amplifier modules are safety approved and EMC verified, for easy market compliance certification.

    Application Support

    Pascal offers comprehensive on-going support in ensuring a smooth transition from product concept definition, through design-in, to final product launch and beyond. This is with the objective of ensuring a faster time-to-market and to optimize the product value of the final loudspeaker design.

    Evaluation Kits

    Pascal offers comprehensive on-going support in ensuring a smooth transition from product concept definition, through design-in, to final product launch and beyond. This is with the objective of ensuring a faster time-to-market and to optimize the product value of the final loudspeaker design.

    Design-in Documentation

    Pascal offers clients a wide range of design-in materials; including designers’ manuals and CAD files.

    Engineering Support

    Our application engineering team has experience across a wide breadth of pro audio applications and offers direct support in the development and review of our clients’ designs.
