ZoneController

IP SERIES ACCESSORIES

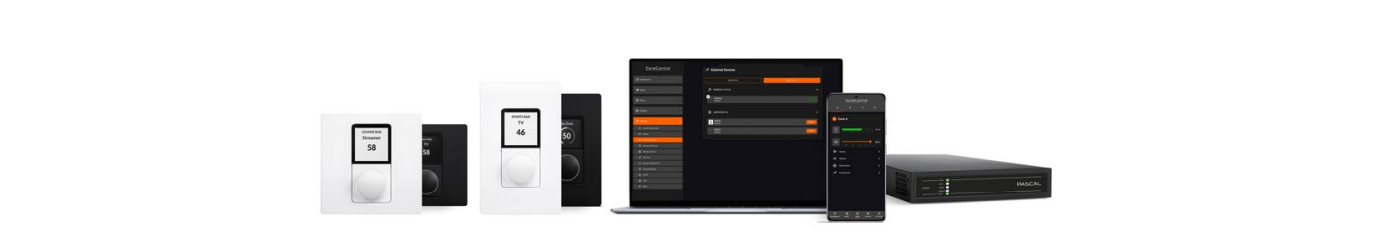

With Pascal IP series amplifiers and our ZoneControllers
you can connect, configure, and control any audio
system via the ZoneControl web app, and create the
most impressive multi-zone sound system in minutes.

Specifications
Features
Downloads
Contact Pascal Sales
ZoneController Specifications
>
  • Colour
    •
  • White / Black
    •
  • Form factor
    •
  • EU / US
    •
  • Operating Temperature Range
    •
  • 0-40°C (32-104°F)
    •
  • Display Screen Resolution
    •
  • 240 x 240 pixels
    •
  • Display Screen Type
    •
  • RGB, Transmissive / Normally Black
    •
  • Display Screen Material
    •
  • High gloss polished transparent acrylic
    •
  • Exterior & Mechanical Parts Material
    •
  • Plastic (ABS-PC)
    •
  • Base Construction & Shield Material
    •
  • Pre-galvanized steel
    •
  • Power Consumption
    •
  • PoE Class 1 / 3.84 W max
    •
  • Power Supply
    •
  • Power to the RJ45 ethernet port on the rear of device using a category 5e cable (or faster STP) with the use of a standard PoE switch, or PoE injector
    •
  • Standby Modes
    •
  • 6 settings available: 30 secs, 2 mins, 5 mins, 15 mins, 30 mins, 60 mins
    •
  • Connection & Data Protocol
    •
  • RJ45, Pascal proprietary over CAT 5e (or faster STP)
    •
  • Maximum Cable Length (CAT 5e)
    •
  • 100m (328ft)
    •
  • IP Rating
    •
  • IP 30
    •
  • Warranty Period
    •
  • 2 YEARS
    •

    ZoneController Features
    Connect up to 8 x ZoneControllers

    Per Pascal IP series (DSP) amplifier, and configure exactly as you need in the amp’s ZoneControl web app.

    Smart PoE technology

    Means straight-forward network pairing, change settings across the system and makes it simple to assign any of the sound zones.

    The ZoneController has a clear and intuitive menu

    So setting-up and configuring the system is easy. But that also means it’s easy to hand over to the venue and explain the usability.

    Change source in a few clicks

    Increase and decrease volume with the simple tactile button. There is a minimum/maximum setting so the volume can be customised and managed for each location.

    Easy 4-digit PIN code protection

    With access settings for a secure install. This code can be required for advanced menu settings, only to edit source & volume - or total settings lock.

    Universal Mains & PFC

    Pascal’s UREC™ PFC (Power Factor Correction) power supply technology enables universal AC mains operation, eliminating the need for local market specific power regulation products and susceptibility to related reliability issues. The power supply delivers consistent, regulated power worldwide.

    Real-time device syncing

    With the system means any actions on one ZoneController are instantly shown on the others, as well as reflected in the amplifiers ZoneControl web app.

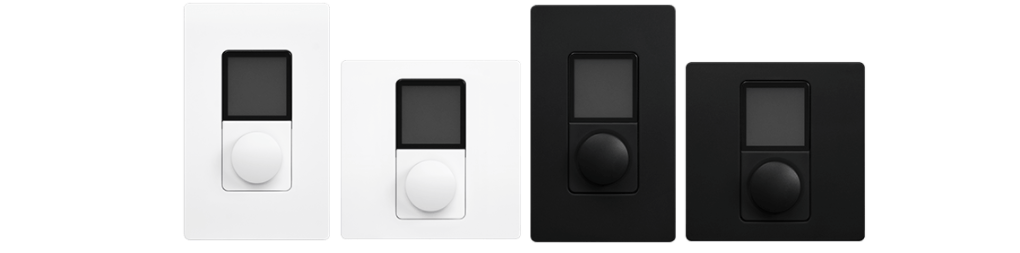

    The minimal Danish design

    Means there are no exposed screws, while the matt surface is touch friendly. Available in industry standard White RAL9003, and Black RAL9005.

    Download
    File name Document size Version Last updated
    Data sheet     PDF (460.29 KB) 1.0 09-08-2023
