DSP-A module

DSP module optimized for 2-way full range and subwoofer speaker applications

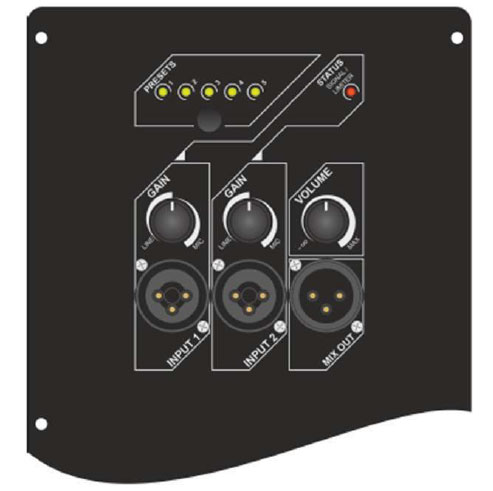

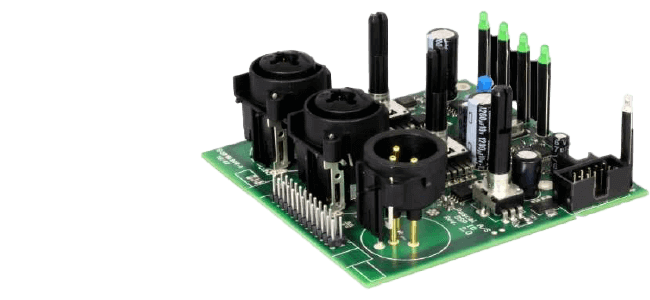

The Pascal DSP-A module is based on Analog Devices’ 1701 DSP and compatible with any Pascal U-T-S-L series amplifier modules. The feature set include XLR combos that automatically selects between mic and line as well as 5 preset for easy speaker set up.

Specifications
Downloads
Contact Pascal Sales
DSP-A module Specifications
>
  • Target applications
  • 2-way full range and subwoofer speakers
  • Input connectors
  • 2 x Neutrik XLR combo
  • Output connectors
  • 1 x Neutrik XLR
  • Gain
  • One for each channel
  • Master volume
  • One master volume potentiometer
  • LEDs
  • 5 x presets LEDs • 1 x status LED
  • Preset selector
  • 1 x push button
  • Max unclipped signal
  • +22dBu
  • Dynamic range
  • 106dB
  • Sample rate
  • 48kHz
  • DSP presets
  • 5
  • Compatible Pascal amplifier module
  • U-T-S-L series modules
  • Software templates
  • 2-way full range and subwoofer
